COMMENTS

 Hi,

Yes, for sure work is in progress.

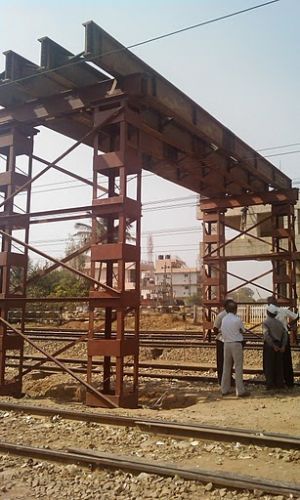

Apart from the work next to police station, over the past week, two iron girders (more like scaffoldings) have come up between the tracks (cant figure out whether they are some kind of support for erection work or will they stay there for ever!).

I haven't had chance to take photographs; but, will try to share in the next couple of days!

Cheers.....Surya

• thumb_up 34 Likes
• · login or register to post comments

Hi,

Here are some snaps (not good quality) taken this evening on my mobile! Hope to do a better job - may be over this weekend.

http://picasaweb.google.co.in/suryakamal/Bridge22ndMarch2010#

Cheers...Surya

• thumb_up 37 Likes
• · login or register to post comments

Will be fun to record the critical part of work - putting that long span over the temporary support structures. Should ask them when they plan to do it. I am sure it will be done in the night. We can go record with our night cams!

• thumb_up 31 Likes
• · login or register to post comments

Hi,

Here is a mail in circulation in Chaitanya group.... I haven't physically checked; but, looks like a good update :)

Over the weekend, will try to take some snaps and share!

Cheers...Surya

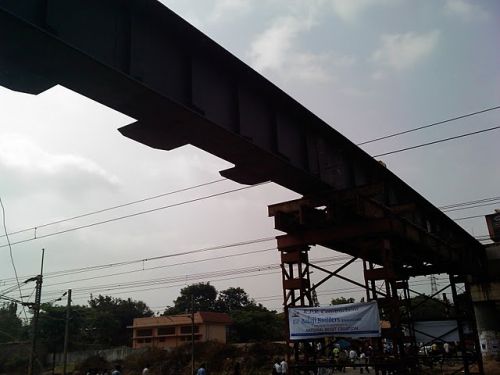

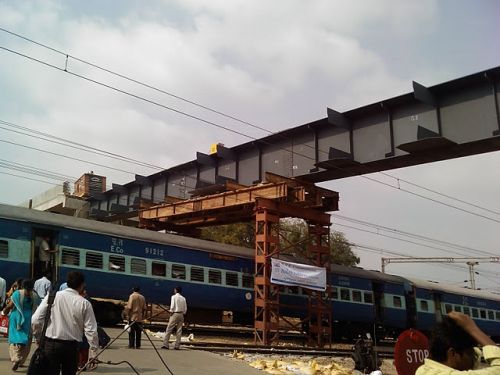

The wait is almost over – after years of staring at the ramps of the ROB that went nowhere – we're happy to report that the first piece of steel girder over the rail lines was put in place at 1:30 AM on 26-March-2010.

The work started just past midnight after the electric lines were disconnected from mains over most of the tracks. 2 tracks on the ashram side were still operational. A Huge crane was brought in and locked in place at around 12:30 AM. The crane did a dry run – turning a full 360 degrees with its lifting arm fully extended to ensure that it did not damage any electric lines. A big truck brought the first piece of the steel girder ( 16 mts long ) along the crane and then the actual work started. The huge steel girder was hoisted up, turned, expertly guided between the electric lines and placed safely in its designated place. The entire operation was beautifully orchestrated by a crew of around 50 people from railways and the contractor. I know it sounds a bit simple but considering he weight that the crane was carrying and the narrow distance between the electric lines – this thing should be on Discovery Channel.

The site engineer shared some information with us – here a brief of what we learned :
- There will be 2 steel girders laid over the railway tracks. Each girder will be 42 meters (m ) long.
- Each girder will have 3 pieces, 2 pieces of 16 m each ( these start from the end of the ramps ) and a middle piece of 10 m.
- The plan is to put the first 16 m piece ( kadugodi side ) and the middle ( 10 m ) piece in place today.
- Tomorrow night they will put the 3rd 16 m piece ( ashram side ) in place.
- Once all 3 pieces are in place they will be welded and riveted together.
- Once this monolith is ready, it will be shifted by a few meters ( parallel to it's current position ) , so that the temporary support structure can be used to assemble the 2nd girder.
- Once both the long 42m girders are in place – they will be cross connected with more steel and a steel sheet will be laid over them and that will form the base of the eventual road.

We also learned from people at the site that there might not be any weight limit on the ROB – meaning that school buses may be able to go over the bridge.

• thumb_up 41 Likes
• · login or register to post comments

Thanks Surya for the snaps.Looks like something is really happening there.Let's hope for the best

• thumb_up 22 Likes
• · login or register to post comments
